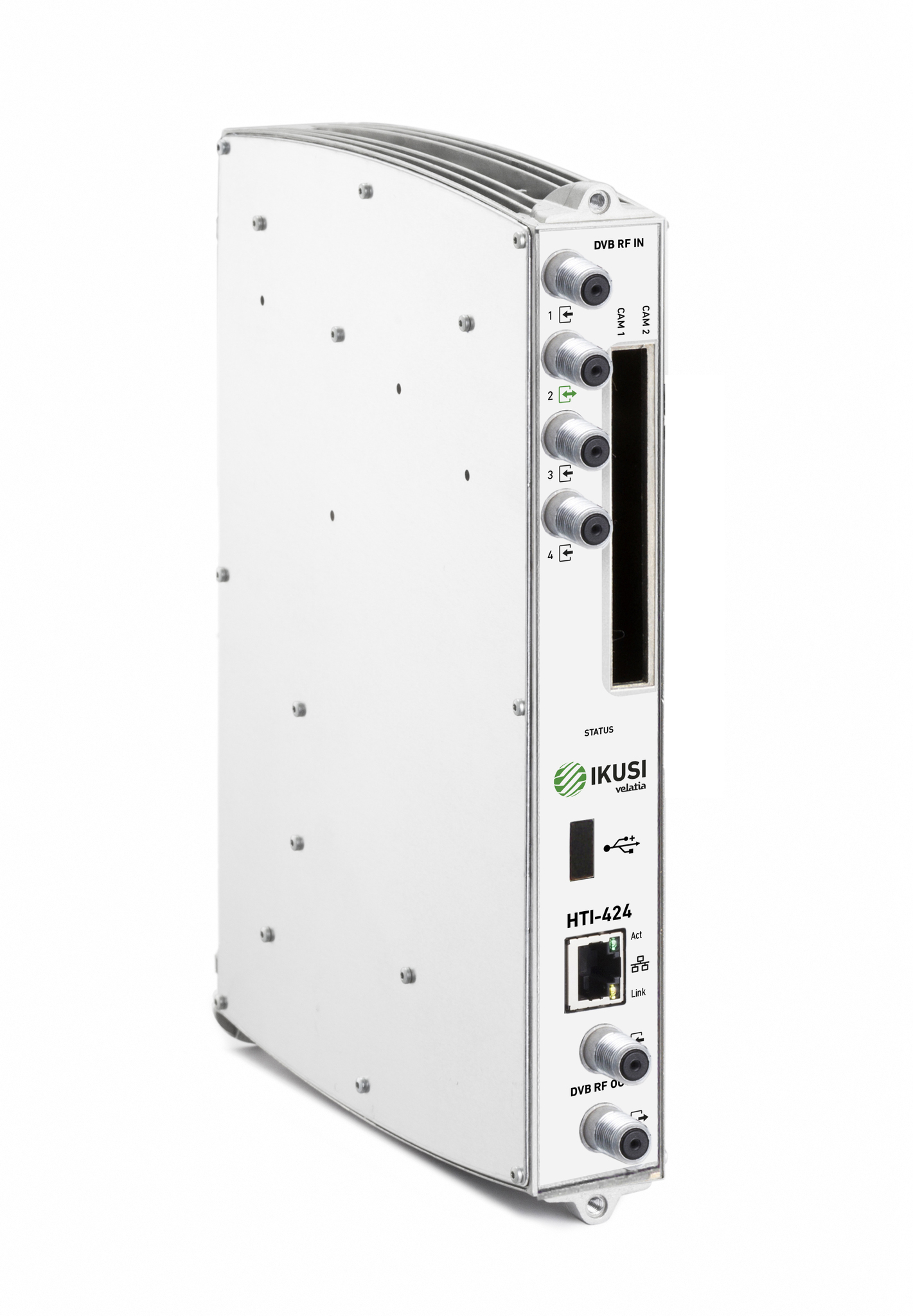

Трансмодулятор HTI-424 IKUSI 4x DVB-S2/T2/C/IPTV to DVB-T/C/IPTV принимает 4 DVB-T/T2, DVB-S/S2, DVB-C или IPTV с мультиплексированием и трансляцией их в 4 выходных канала DVB-T или DVB-C или IPTV
|
Universal RF inputs |
4 (or 1+loop through) |
|
|
Input frequency range |
MHz |
DVB-T/T2 : 47-862 DVB-S/S2 : 950 - 2150 DVB-C : 47-862 |
|
Input level |
dBμV |
40 - 92 |
|
Symbol rate |
MS/s |
DVB-S: 1...45 DVB-S2: 1... 45 DVB-C: 1... 6.952 |
|
Maximum input current |
|
100 mA in connectors 2 and 4 250 mA in connectors 1 and 3 |
|
DiSEqC support |
|
Up to 16 polarities with DiSEqC 1.0 (Note1) |
|
IPTV Inputs |
||
|
Input interface |
|
Front RJ-45 Gigabit Ethernet |
|
Number of inputs |
|
4 (SPTS o MPTS) |
|
MPEG TS Encapsulation |
|
188 byte packets, ISO/IEC 13818-1 compliant |
|
IP Encapsulation |
|
UDP : UDP+RTP |
|
IPv4 Reception Mode |
|
Multicast |
|
Maximum Ethernet MTU |
|
1500 bytes |
|
IP fragmentation support |
|
No |
|
Discovery Protocols |
|
No |
|
IGMP suppported |
|
Yes, IGMP v2 |
|
RTP reordering supported |
|
No |
|
SMPTE 2022-1 FEC supported |
|
No |
|
Maximum input bitrate (per input) |
|
216 Mbps |
|
Maximum input bitrate (total) |
|
850 Mbps |
|
TS Procesing |
||
|
PSI/SI adaptation |
|
Generating and inserting tables PAT, PMT, CAT, SDT, BAT, NIT, TDT, TOT, EIT |
|
NIT adaptation |
|
Yes (automatically generated) |
|
SDT adaptation |
|
Yes (configurable input name) |
|
LCN, TDT, TOT management |
|
Yes |
|
Cloned services |
|
Yes, from any input to any output |
|
Number of Common Interface slots |
|
2 |
|
RF Output |
||
|
Number of outputs |
|
4 channels DVB-T / DVB-C (47 - 862 MHz) |
|
MER |
dB |
> 40 |
|
Output level |
dBμV |
85 |
|
Maximum output bit rate DVB-T |
Mbps |
31.7 |
|
Operation modes DVB-T |
|
2K / 8K |
|
Output bandwidth DVB-T |
MHz |
6 / 7 / 8 |
|
Modulation formats DVB-C |
|
16 QAM / 32 QAM / 64 QAM /128 QAM / 256 QAM |
|
Maximum output bit rate DVB-C |
Mbps |
53 |
|
Adjustable output level |
dB |
-15 |
|
Symbol rate DVB-C |
MS/s |
3 ... 7.2 |
|
Output loop-through loss |
dB |
1.1 |
|
IPTV Output |
||
|
Number of SPTS outputs |
|
64 |
|
Number of MPTS outputs |
|
4 |
|
Transmission protocols |
|
SPTS : UDP and RTP MPTS : UDP |
|
SAP protocol |
|
Yes |
|
Interface type |
|
RJ-45 Gigabit Ethernet |
|
Output maximun bit rate |
|
850 Mbps |
|
General |
||
|
Configuration |
|
PC. Interface web Ikusi Headend Discovery (v1.8.5) |
|
Management interface |
|
USB 2.0 Host frontal |
|
Supply voltage |
VDC |
+24 |
|
Operating temperature |
ºC |
0... +45 |
|
Consumption |
A |
1 |
|
Dimensions |
mm |
230 x 195 x 32 |
|
Weight |
kg |
1.165 |
|
Protection index |
IP |
IP20 |

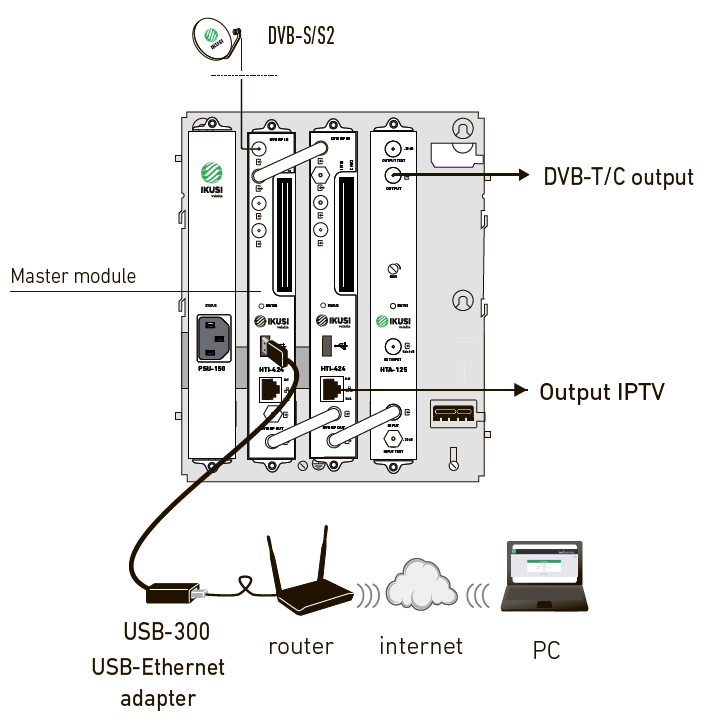

БАЗОВАЯ КОНФИГУРАЦИЯ

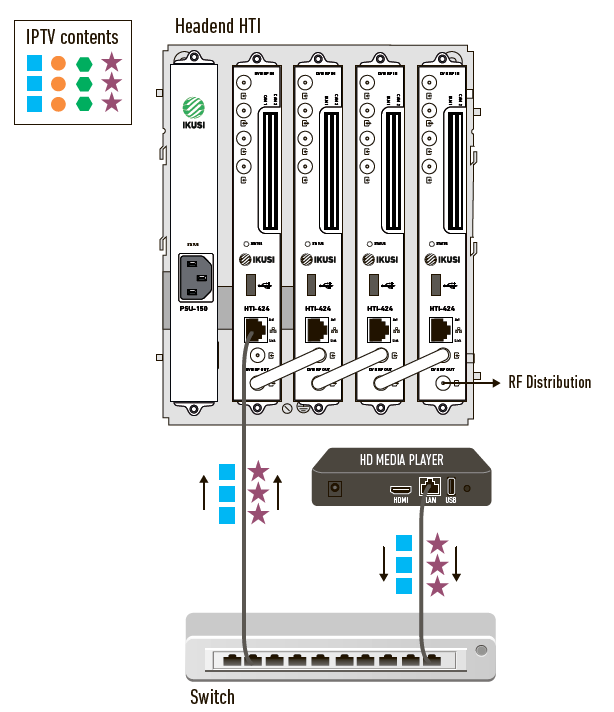

КОНФИГУРАЦИЯ ПРИ ИСПОЛЬЗОВАНИИ МЕДИПЛЕЕРА

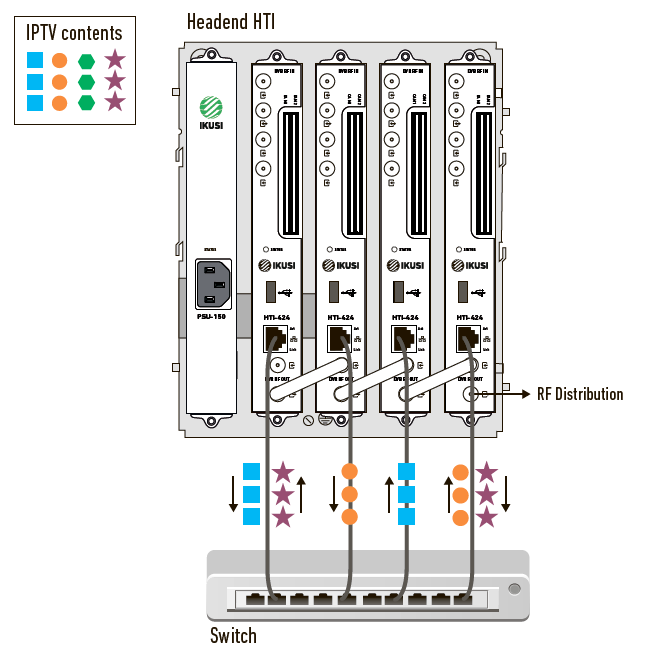

ОБМЕН СЕРВИСАМИ

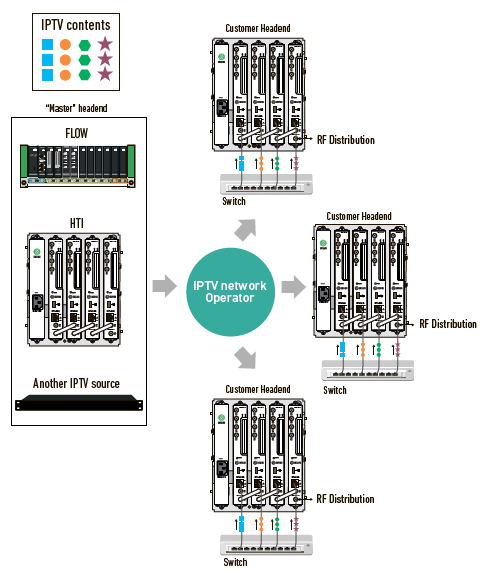

EDGE - QAM / COFDM
СПЕЦИФИКАЦИЯ
