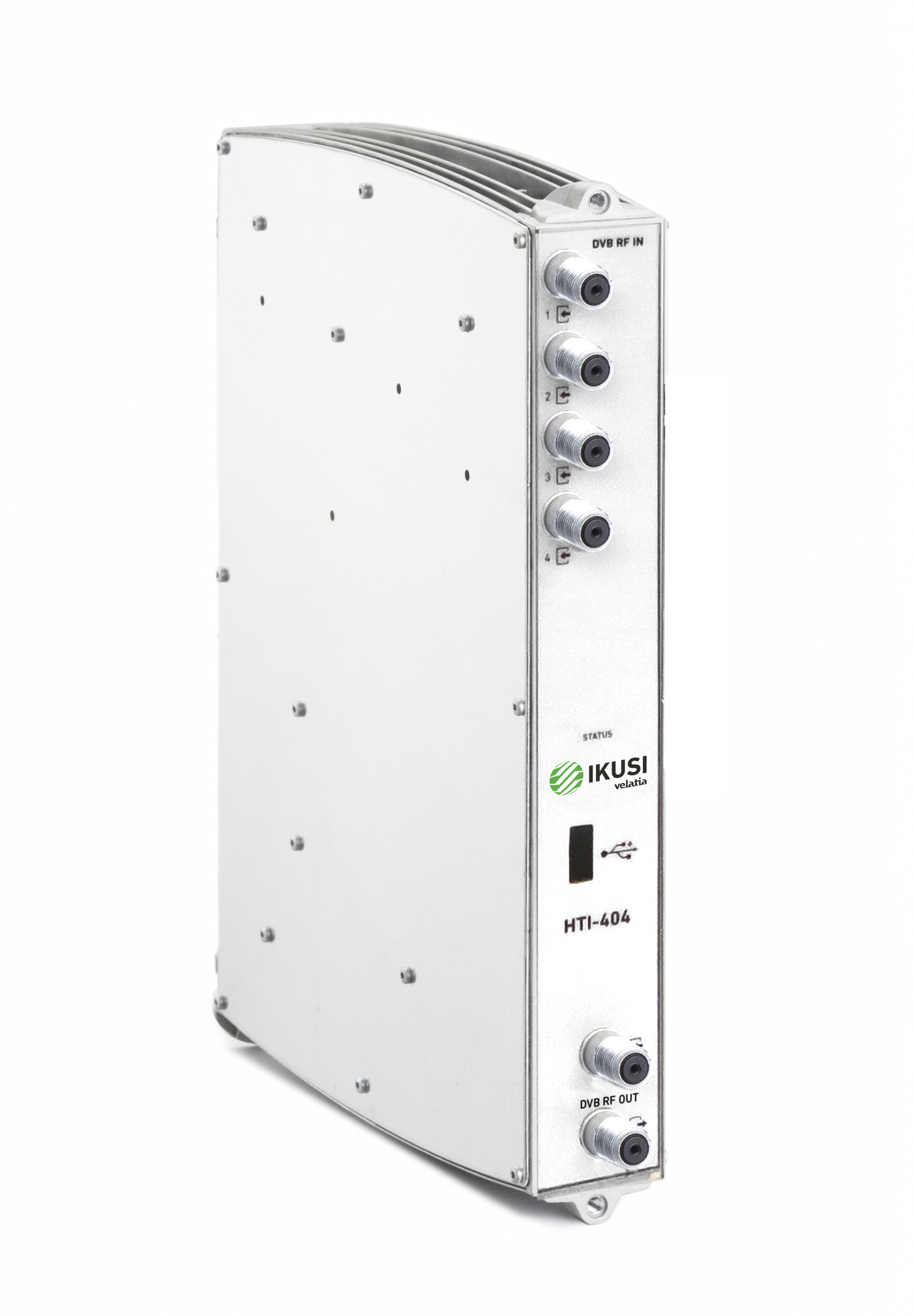

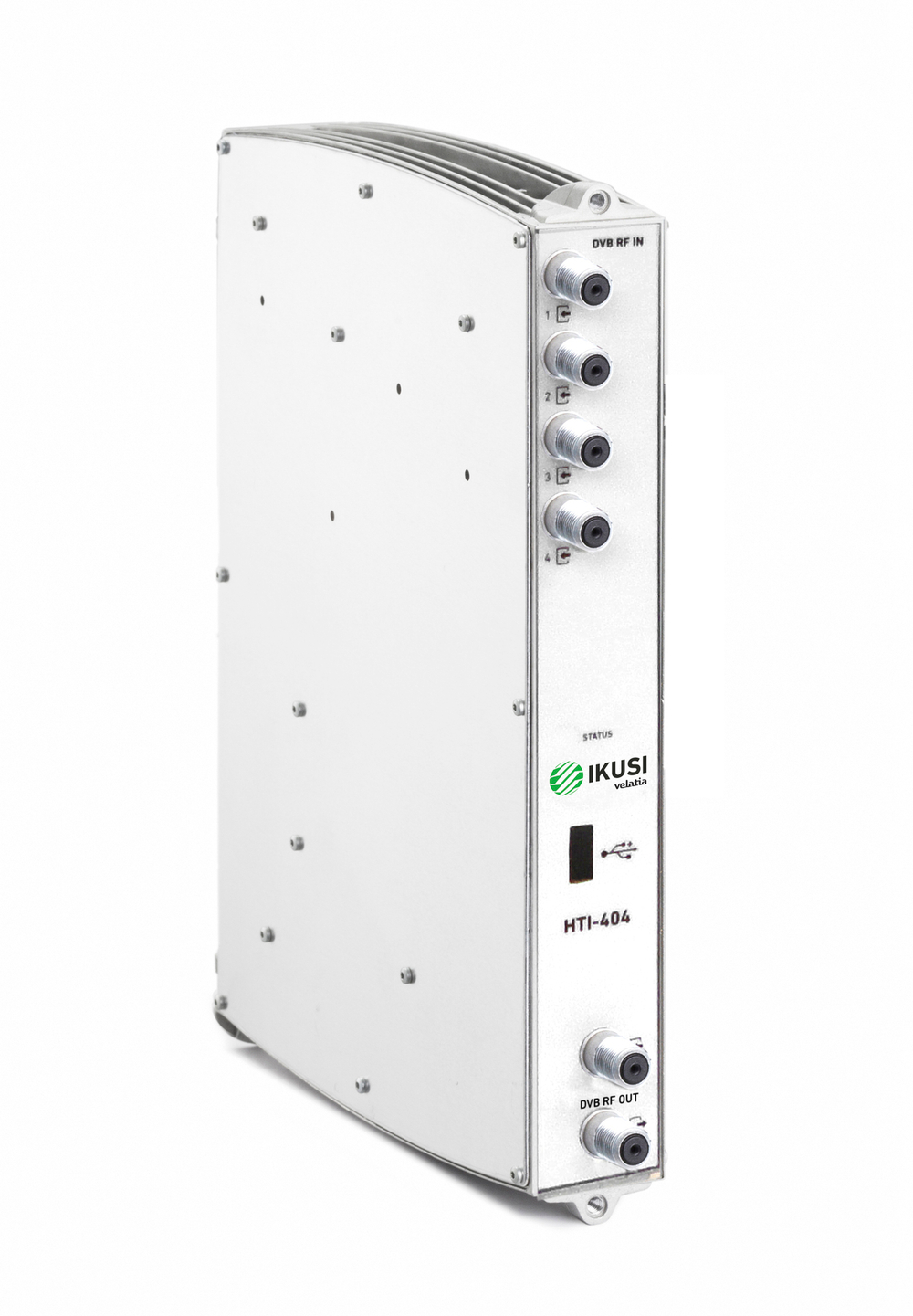

Трансмодулятор HTI-404 IKUSI 4x DVB-S2/T2/C to DVB-T/C принимает 4 DVB-T/T2, DVB-S/S2 или DVB-C с мультиплексированием и трансляцией их в 4 выходных канала DVB-T или DVB-C.
|
Inputs |
4 |
|
|
Input frequency range |
MHz |
DVB-T/T2 : 47-862 DVB-S/S2 : 950 - 2150 DVB-C : 47-862 |
|
Input level |
dBμV |
40 - 92 |
|
Symbol rate |
MS/s |
DVB-S: 1...45 DVB-S2: 1... 45 DVB-C: 1... 6.952 |
|
Maximum input current |
|
100mA in 2,3 and 4 connectors. 250mA in 1 connector |
|
Fitted with DiSEqC (v. 1.1) |
|
No limit on number of polarities |
|
TS Procesing |
||
|
PSI/SI adaptation |
|
Generating and inserting tables PAT, PMT, CAT, SDT, BAT, NIT, TDT, TOT, EIT |
|
NIT adaptation |
|
Yes (automatically generated) |
|
SDT adaptation |
|
Yes (configurable input name) |
|
LCN, TDT, TOT management |
|
Yes |
|
Cloned services |
|
Yes, from any input to any output |
|
Outputs |
||
|
Number of outputs |
|
4 channels DVB-T / DVB-C (47 - 862 MHz) |
|
MER |
dB |
> 40 |
|
Output level |
dBμV |
85 |
|
Maximum output bit rate DVB-T |
Mbps |
31.7 |
|
Operation modes DVB-T |
|
2K / 8K |
|
Output bandwidth DVB-T |
MHz |
6 / 7 / 8 |
|
Modulation formats DVB-C |
|
16 QAM / 32 QAM / 64 QAM /128 QAM / 256 QAM |
|
Maximum output bit rate DVB-C |
Mbps |
53 |
|
Adjustable output level |
dB |
-15 |
|
Symbol rate DVB-C |
MS/s |
3 ... 7.2 |
|
Output loop-through loss |
dB |
1.1 |
|
General |
||
|
Configuration |
|
PC. Interface web Ikusi Headend Discovery (v1.8.5) |
|
Management interface |
|
USB 2.0 Host frontal |
|
Supply voltage |
VDC |
+24 |
|
Operating temperature |
ºC |
0... +45 |
|
Consumption |
A |
0.67 |
|
Dimensions |
mm |
230 x 195 x 32 |
